View MoreHangzhou Hengnie Machinery Co., Ltd. designs and manufactures the D-series Hydraulic Drive Gearboxes manufacturer range at our factory in Zhejiang, China. These units are built for agricultural machinery that takes power from a hydraulic motor rather than a tractor PTO shaft. A standard hydraulic motor flange is reserved at the input end, so the motor connects directly to the gearbox without an adapter plate, and the complete hydraulic circuit remains compact and easy to route on the implement.
This category covers our Agricultural Hydraulic Drive Gearbox family: cast iron D-series units sized for orchard fertilization equipment, organic fertilizer spreaders, manure applicators and general farm hydraulic transmission systems. We support OEM projects with standard models, modified shaft configurations and fully custom ODM designs. Alongside the D-series, our full agricultural transmission range includes right-angle, parallel-shaft and Application-specific Gearbox series for other implements.
Our portfolio also includes ND D296 High Torque Gearbox for Orchard Fertilizer Spreader for applications with different operating ranges, interfaces or integration requirements.
Our D-series hydraulic gearbox uses a one-piece cast iron housing. That gives the flange joint high machining accuracy and reduces the risk of oil leakage at the motor interface, even when pressure fluctuates during field operation. The internal bevel gear set is finish-ground, which keeps torque output stable under frequent start-stop cycles and the shock loads typical of rough orchard terrain.
Because the gearbox is directly driven by a hydraulic motor, it suits equipment where PTO availability is limited, where speed needs to be adjusted independently from tractor engine speed, or where the drive point is far from the PTO shaft.
The D-series range is positioned around fertilizer spreading and material application equipment. The same construction principles apply to general agricultural hydraulic drives where a cast iron housing and stable bevel gear transmission are required.
| Model | Ratio | Output Torque | Shaft Bore / Connection | Primary Application Fit |
|---|---|---|---|---|

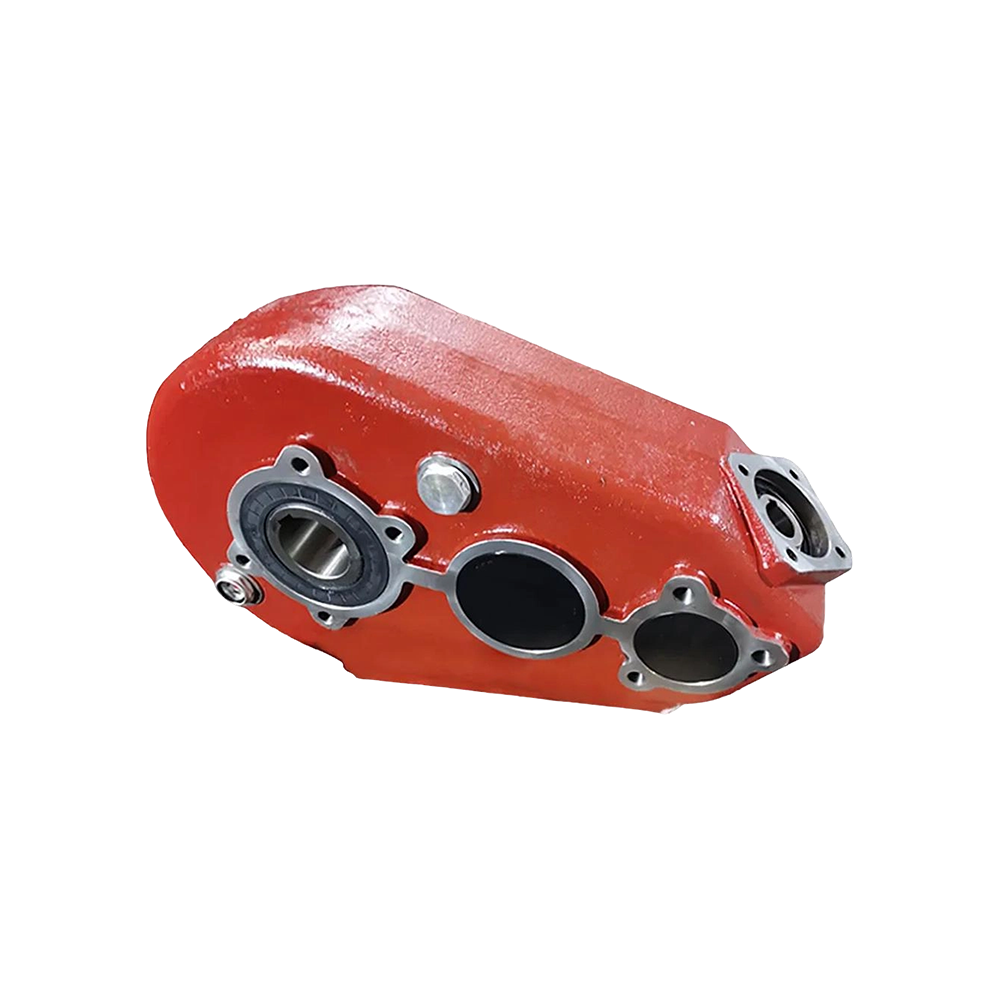

| ND D296 | 31.7:1 | 8000 N·m | Φ55, Φ60, Φ65 mm with keyway | Orchard fertilizer spreader |

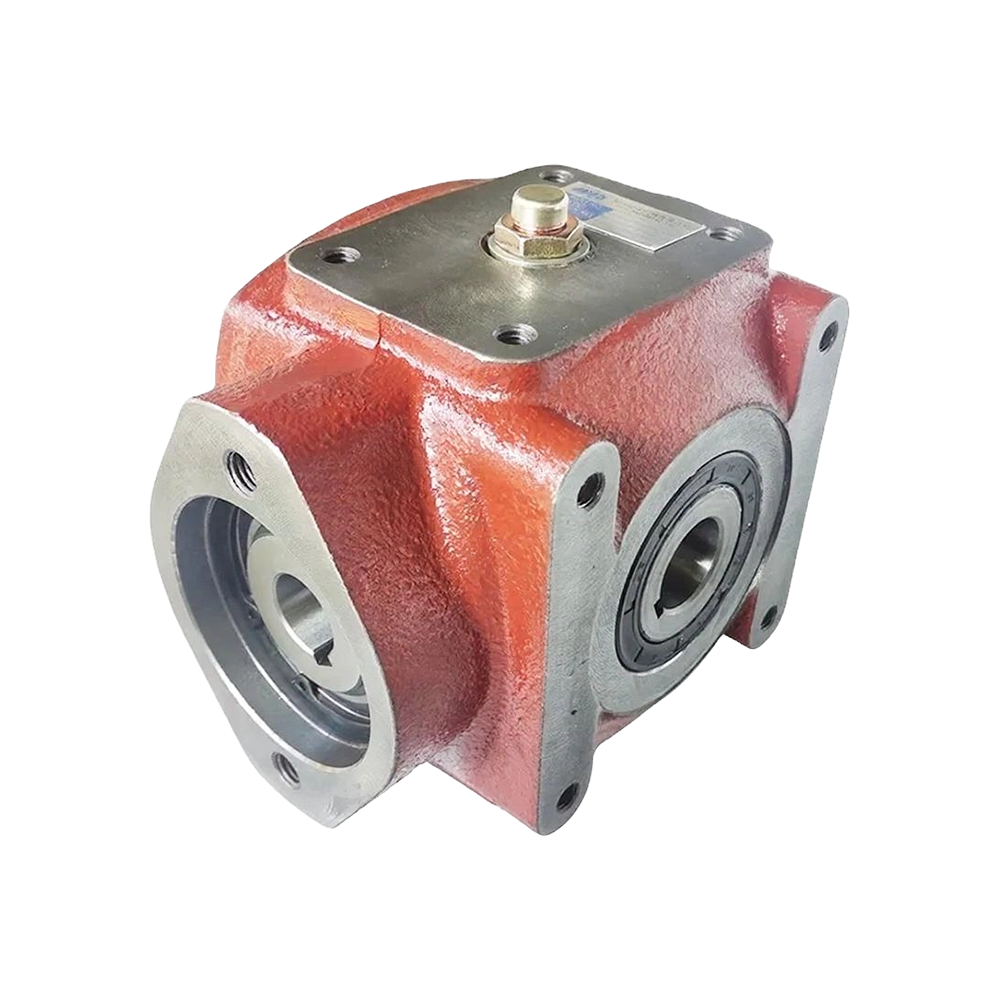

| ND D011 | 1.9:1 | 450 N·m | Φ30, Φ35 mm with keyway; 1-3/8-inch spline | Organic fertilizer spreader, hydrostatic transmission |

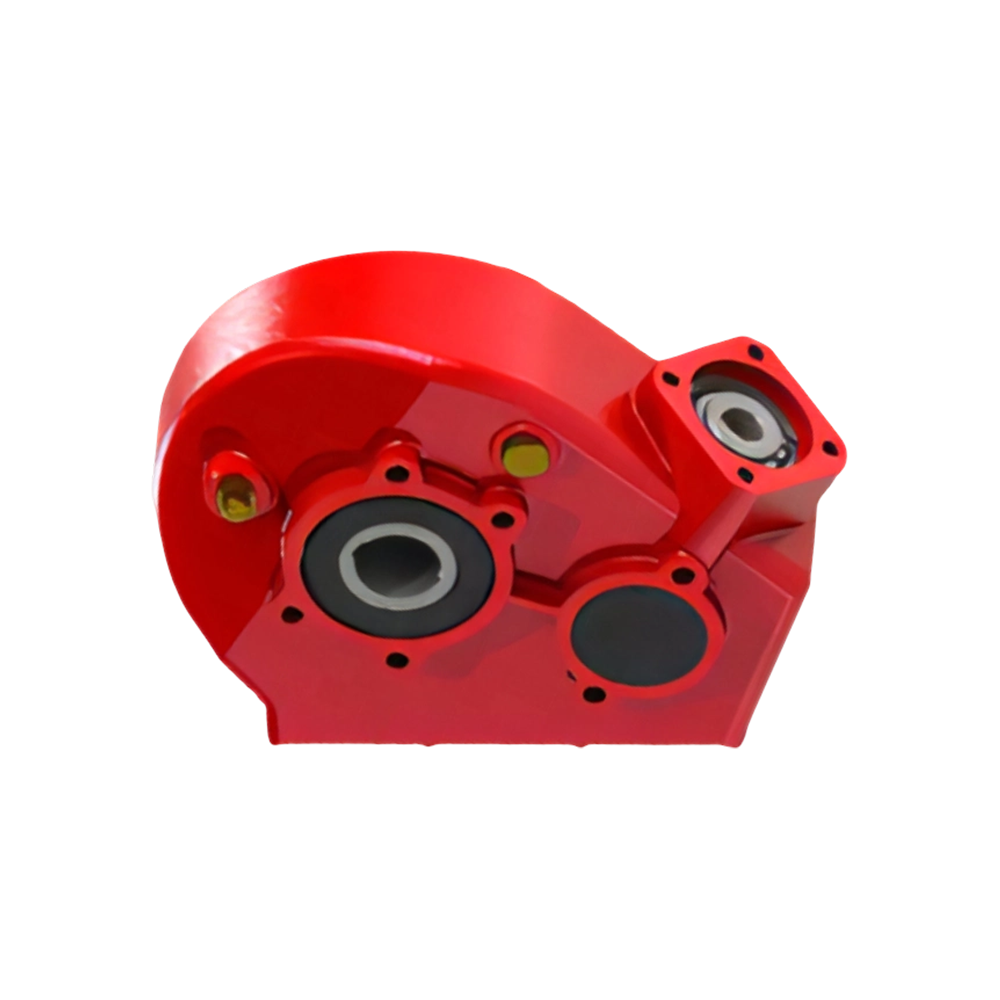

| ND D251 | 21.1:1 | 2600 N·m | Φ40, Φ45, Φ50 mm with keyway | General agricultural hydraulic transmission |

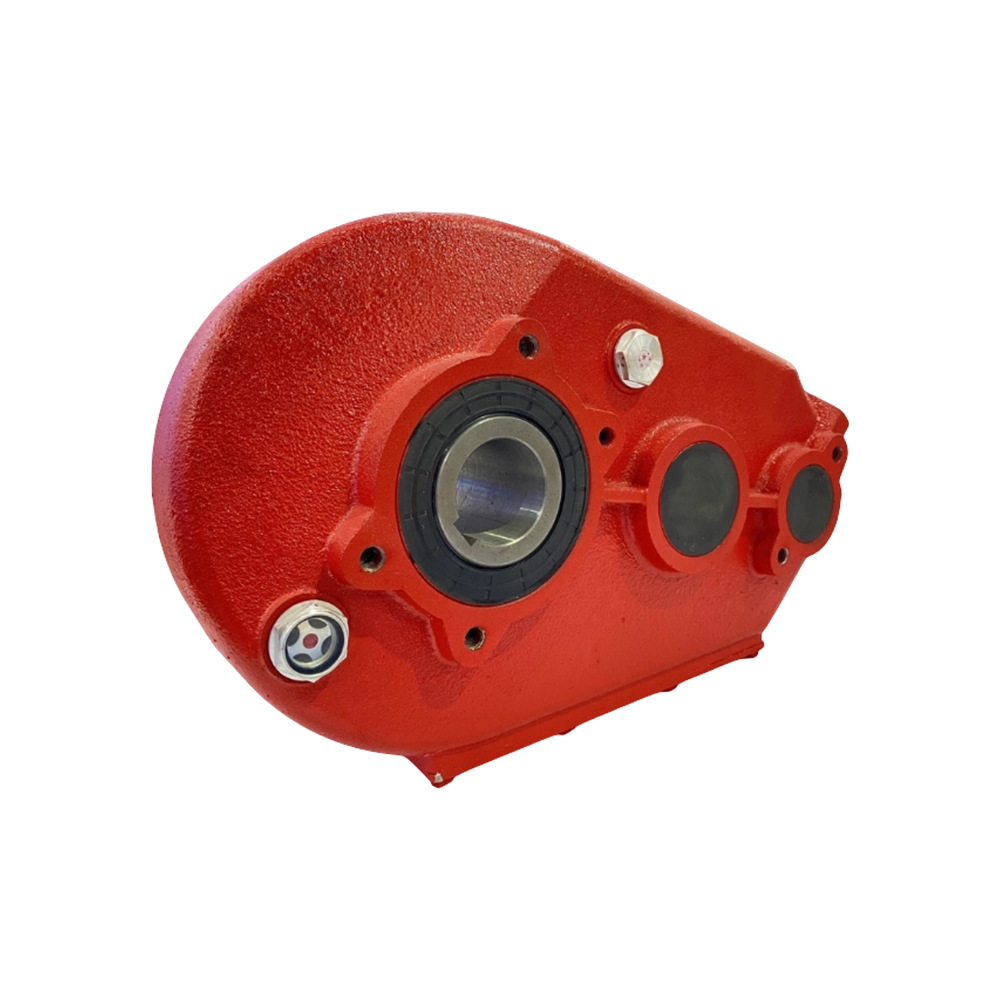

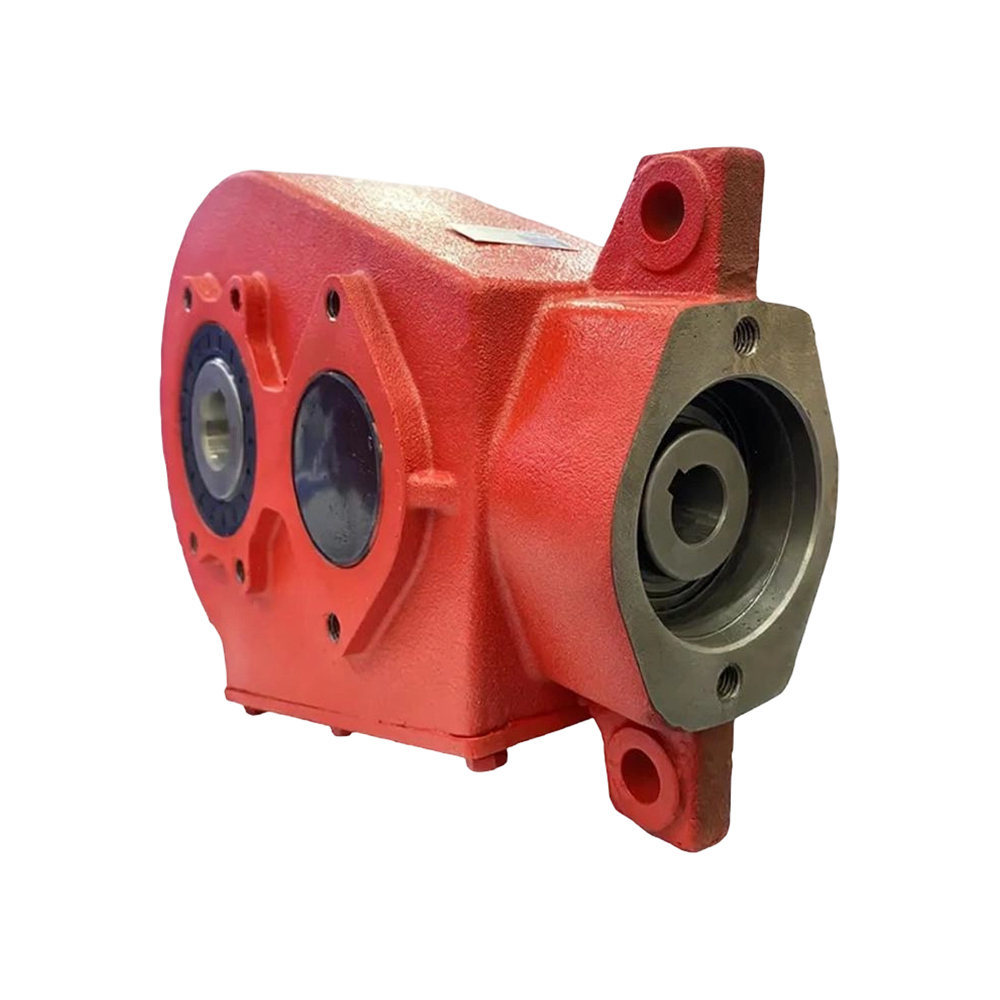

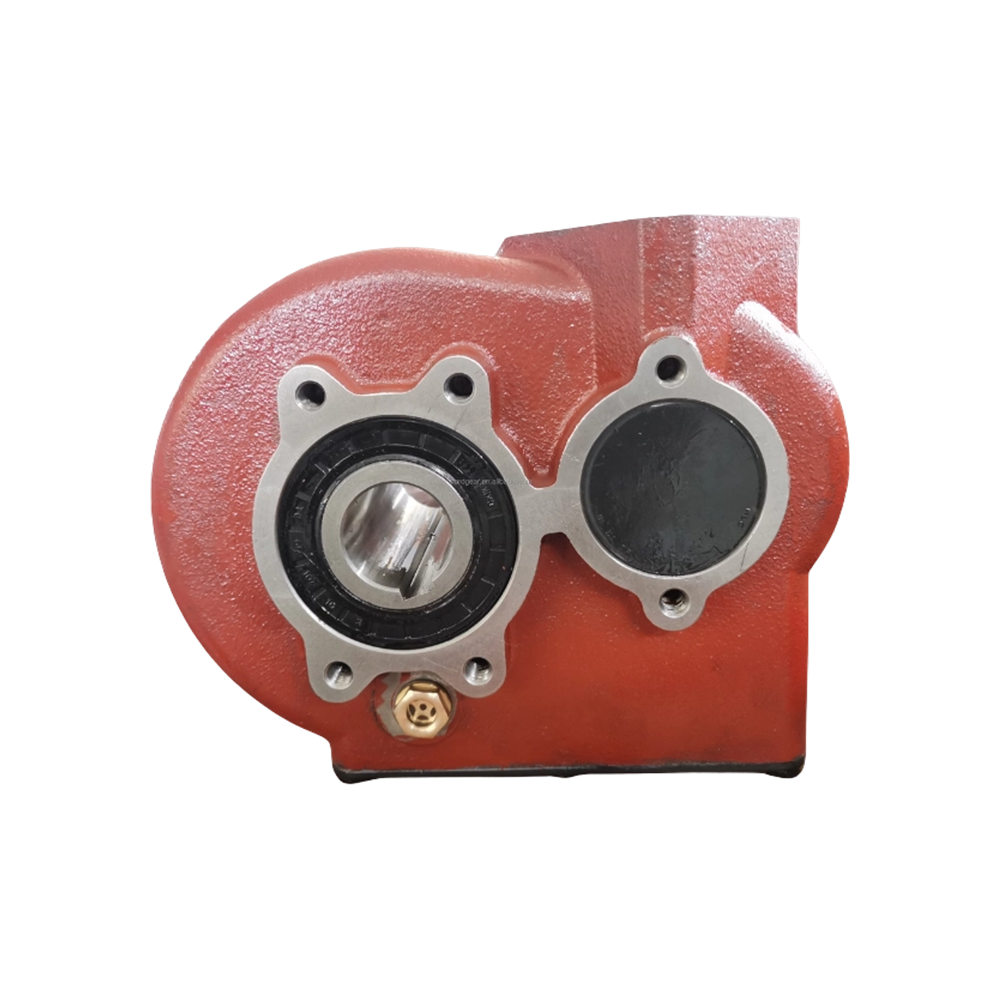

| ND D200 / D293 / D191 | Confirmed per working point | Confirmed per working point | Configured for mating implement shaft | Organic fertilizer farming equipment, manure applicator |
For every model, the ratio and output shaft bore are matched to the hydraulic motor displacement, system pressure and intended output speed. Table values reflect our standard published configurations; project-specific ratios, shaft lengths, splines and flanges are part of our normal ODM workflow.
We configure the hydraulic gearbox around the implement's duty cycle and the hydraulic system already on the tractor or machine. The following variables are included in our selection and quotation process:
Our quality workflow follows an ISO-based management system with three control stages: incoming material control, in-process monitoring and final product inspection. For hydraulic drive gearboxes, the inspection points cover dimensional accuracy, gear performance, sealing, assembly status, surface finish and export packaging.
We also provide complete drive packages that include gearboxes, related transmission components and intelligent control systems where the implement requires automated or monitored drive functions.
To prepare a complete proposal, we need the operating context rather than only a part number. The information below lets our engineers select the correct ratio, housing, shaft and sealing level on the first pass.
D-series gearboxes are designed for long field cycles, but normal wear items and transmission components still need to be available. Our Gearbox Spare Parts & Components range includes cylindrical gears, bevel gears, power transmission shafts and PTO-related components, so maintenance can be planned with the same engineering basis as the original build.
After delivery we provide drawings, specification manuals and installation guides for equipment assembly and commissioning. Remote technical consultation covers fault analysis and working-condition advice, and follow-up feedback supports product iteration for the next batch.
D-series boxes are supplied with a standard hydraulic motor flange at the input end. We match the flange and input geometry to the motor model you plan to use, so the motor can be mounted directly without an adapter plate. The final selection is based on motor displacement, working pressure, flow rate and the required output torque.
Yes. Our standard D-series configurations include multiple keyed bores and spline options, and custom ratios, shaft lengths, keyways and flange orientations are part of our normal ODM workflow. Send us the mating shaft drawing and the machine's duty cycle, and we will confirm the interface before mass production.
The one-piece cast iron housing and precision-machined flange joint reduce the risk of leakage under pressure fluctuation. During final inspection, we perform a sealing test on the complete housing and verify the flange interface before the gearbox is packed for export.
ND D296 is the high-torque model for orchard spreaders, with an 8000 N·m rating and 31.7:1 ratio. ND D251 is a universal cast iron hydraulic gearbox with 2600 N·m and 21.1:1 ratio for general agricultural machines. ND D011 is a low-ratio hydrostatic transmission unit with 450 N·m and 1.9:1 ratio for stepless organic fertilizer spreading.
Each shipment is documented with inspection records, test results, packing lists, nameplate information and, where requested, the technical drawings and installation manual. We also confirm export packaging details before dispatch to suit sea freight conditions.
