View MoreHangzhou Hengnie Machinery Co., Ltd. builds the B Series Agricultural Cast Iron Gearbox Manufacturer range as a direct supplier in Xiaoshan, Hangzhou, China. The B series is our Agricultural Cast Iron Gearbox line for 90-degree power steering in agricultural machinery and related power transmission equipment. We developed the family for machines that work in dusty fields, muddy water, and heavy alternating loads: agricultural wood chippers, rotary tillage tools, conveying mechanisms, and bundling or packaging systems.
These gearboxes are not general-purpose industrial reducers adapted for farming. Every B-series model starts with a cast iron housing, a right-angle drive architecture, and a sealing package tuned for field conditions. Depending on the model, the gear set is helical or spiral bevel, and the output can be arranged for vertical or horizontal installation. The result is a compact cast iron gear box that combines the damping and rigidity of iron with the low maintenance that long-season agricultural work demands.
The B series is a Cast Iron Gear Reducer family with models matched to specific machine functions. While all units provide 90-degree transmission steering, the internal architecture, mounting layout, and auxiliary functions differ by model. This allows us to quote a drive unit, rather than forcing a generic right-angle box into the equipment layout.
| Model | Drive Architecture | Application Fit | Ratio Example |
|---|---|---|---|
| ND B151 | 90° helical gearbox, vertical mount, cast iron transmission case | Grain transport, branch shredders, tillage, fertilizer spreaders | 1:1 |
| ND B315 | 90° vertical helical gear unit, cast iron housing | General agricultural power transfer, tillage and material transport machines | 1:3 |
| ND B330 | 90° helical speed increaser for right-angle output speed increase | Farm equipment requiring output speed above PTO input speed | 1:1.66 to 1:3 |
| ND B313 | Cast iron helical gearbox with freewheel for rotary tiller drives | Rotary tillers and cultivators with freewheeling rotor requirements | Custom |
| ND B198 | Vertical cast iron PTO gear reducer | Wood chipper and shredder equipment driven from a tractor PTO | Custom |
| ND 390 | Heavy-duty 1:1 right-angle bevel gear box | 90° steering in high-torque agricultural drivelines | 1:1 |

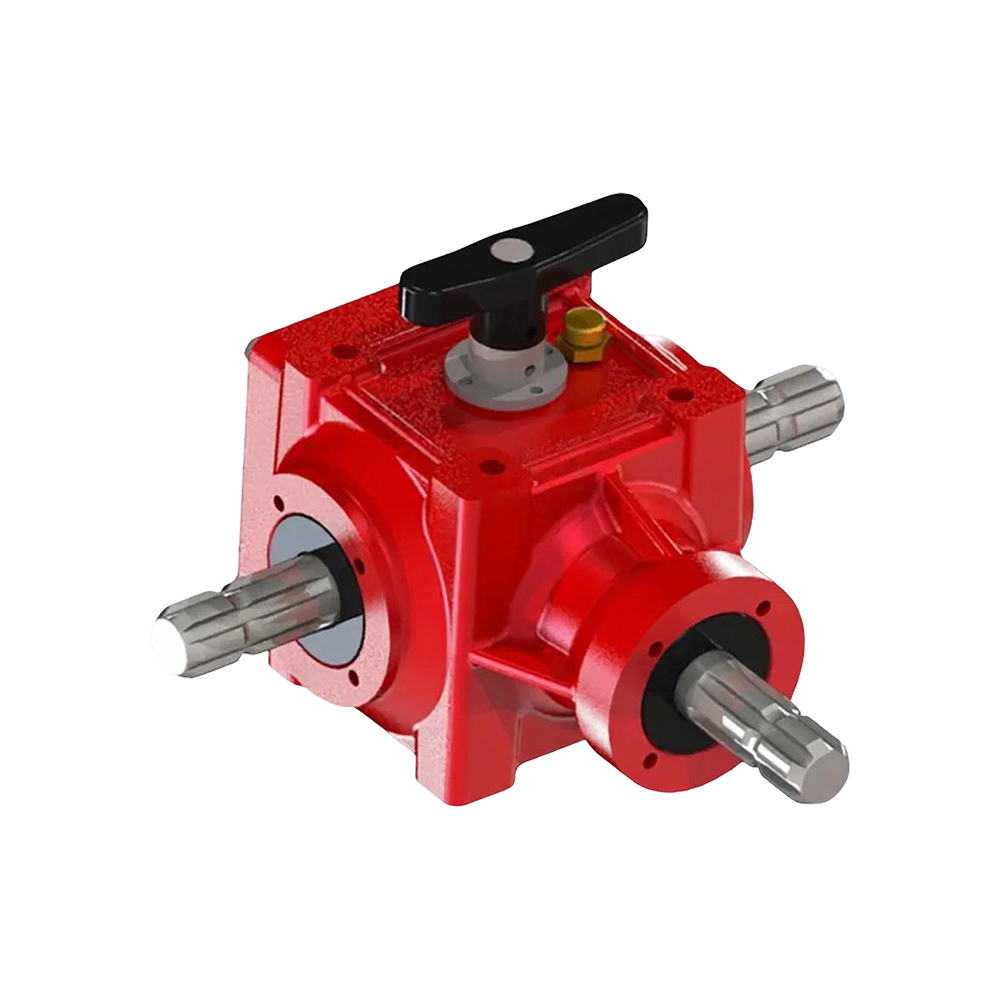

| ND B1102E | Clutch gearbox with engagement control | Grain auger and conveyor transmission units | Custom |
High-strength cast iron is the defining material of the B series. The housing provides impact load resistance, vibration damping, pressure resistance, wear resistance, and long-term sealing behavior. These properties matter when a gearbox is mounted close to soil, crop residue, and tractor PTO shocks.
We review the working point before proposing a gear set. Input power, input speed, output torque, ratio, direction of rotation, and mounting position all affect the size of the gears, bearings, and housing wall. For a B-series unit, the objective is not maximum theoretical capacity; it is reliable operation under the actual field cycle.
The B series is positioned for agricultural drive positions where the machine needs a right-angle change in power flow and a cast iron housing. Typical application fields include agricultural wood chippers, rotary tillage machinery, bundling and packaging machinery, grain augers, and conveying mechanisms.
We integrate the gearbox into the machine as a transmission component, not as a standalone catalogue item. That means we coordinate shaft extensions, keyways or splines, flange dimensions, and rotation direction with the equipment layout. When a complete drive package is needed, we can include gearboxes, accessories, and control components under a one-stop supply arrangement.
Several B-series models support configuration beyond a fixed catalogue option. Ratio, shaft and gear specifications can be custom-made as required, and rotation direction can be specified for one-way operation. For OEM and ODM projects, we work from customer drawings, samples, or working-condition data.
Our Custom Gearboxes program extends this further when the B series does not match the envelope or load requirement. We have in-house R&D, mold development, prototype machining, and production resources, so the customization path can move from design to prototype to mass production without handing off critical engineering decisions to a third party.
Common configuration variables we expect to define on a B-series project:
Hangzhou Hengnie is a direct manufacturer with independent production, processing, and R&D systems. The factory operates under a standardized assembly-line model, and key processes use advanced equipment. We also design and build automated equipment and molds internally, which gives us control over the manufacturing steps that most affect gearbox precision and consistency.
Quality is managed through an ISO-based quality management framework. We apply incoming material control, process monitoring, and final product inspection. For gearboxes, the inspection scope covers dimensional accuracy, gear performance, sealing, assembly status, surface finish, and export packaging. Customized products can be organized for factory acceptance testing before dispatch, with inspection reports and shipping documentation prepared as part of the contract.
Because the B series is built for field conditions, final testing is not limited to a free-running check. We verify sealing, gear engagement, rotation freedom, and mounting consistency before the unit is packed for export.
To prepare a precise proposal, our engineering team needs the operating conditions of the machine, not just a model number. The list below is the minimum project data we use to configure a B-series gearbox and quote the correct variant.
When these points are clear, we return a configuration recommendation with the applicable ratio, housing variant, shaft treatment, and any required auxiliary functions. Early review of these parameters reduces later revisions and gives us a clear basis for sampling and serial production.
Agricultural drives should only stop for scheduled maintenance. The B series is designed for low routine servicing, but when replacement parts are needed, we supply original Gearbox Spare Parts & Components such as cylindrical gears, bevel gears, transmission shafts, and PTO shafts. This keeps maintenance direct and avoids undocumented substitutions.
After delivery, we provide technical documentation including drawings, specification manuals, and installation guides for equipment assembly and commissioning. Remote technical consultation is available for fault analysis and working-condition questions, and we continue to follow up after the gearbox enters service. Export packaging is arranged for long-distance sea freight and cross-border logistics, with packing and shipping documentation confirmed before dispatch.
Yes. Models such as ND B151 and ND B315 are specifically designed for vertical mounting, while other B-series configurations support horizontal right-angle installation. In a proposal we confirm the mounting position, output shaft direction, and available envelope so the gearbox matches the implement layout rather than requiring a layout change.
The range includes 1:1 right-angle bevel boxes, 1:3 reduction units, and 1:1.66 to 1:3 speed increasers. The ND B330 is a dedicated speed increaser for machines that must raise output speed from a PTO input. For non-standard ratios, shaft and gear specifications can be custom-made as required.
The cast iron housing provides the rigidity and damping needed for impact loads, while the sealing structure keeps dust and water away from the gear faces and bearings. Precision-machined gears maintain stable meshing under fluctuating load, and models with clutch or freewheel functions add protection for auger conveyors and rotary tillers.
A drawing or sample is sufficient for replication, but for a new working condition we also need input power, input speed, output torque, duty cycle, mounting position, and shaft details. With that data we can confirm the housing, ratio, seal package, and any custom auxiliary functions before quoting tooling and mass production.
We supply original spare parts and transmission components for our gearbox ranges, including bevel gears, cylindrical gears, transmission shafts, and PTO shafts. Providing the model, ratio, and shaft detail allows us to identify the correct part and support faster maintenance.
